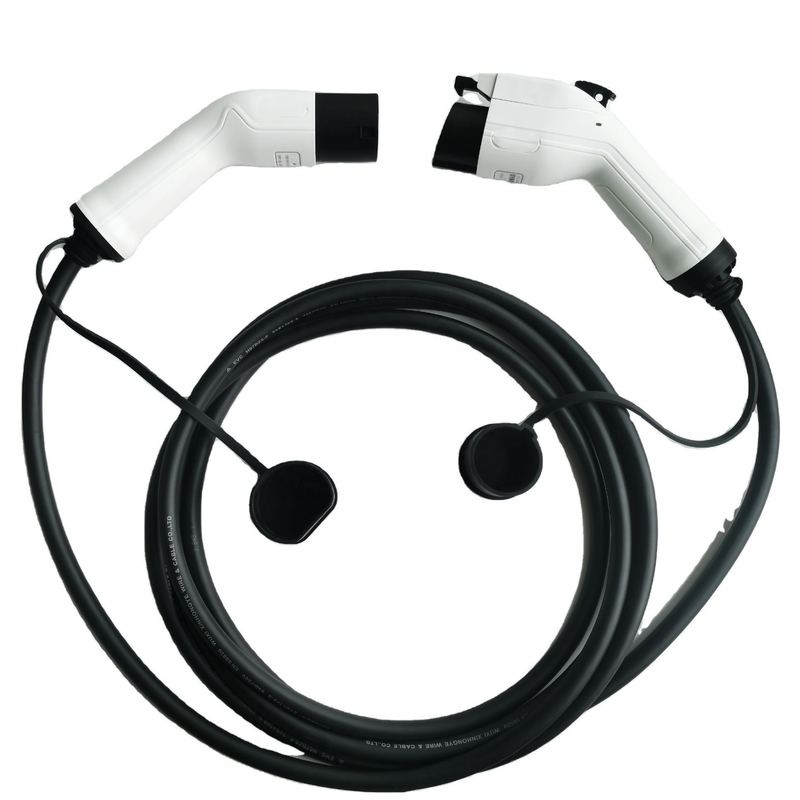

5M Type 1 To Type 2 EV Charger Cable

5M Type 1 To Type 2 EV Charger Cable

  • 5M Type 1 To Type 2 EV Charger Cable
  • 5M Type 1 To Type 2 EV Charger Cable
  • 5M Type 1 To Type 2 EV Charger Cable
5M Type 1 To Type 2 EV Charger Cable
Product Details:
Place of Origin: China
Brand Name: HEIU
Certification: TUV,CE,RoHS
Model Number: T1-T2
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: negotiable
Packaging Details: Carton Box, Pallet
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/Day
Contact Now
Detailed Product Description
Model Number: T1-T2 Package: Neutral Packing
Certificates: CE,TUV Cable Length: 5M
Supply Ability: 1000pcs/Day Operating Temperature: -30°C ~ +50°C
High Light:

EV Charger Cable 3*6.0mm2

,

5M Type 1 To Type 2 EV Charger Cable

,

Type 1 To Type 2 EV Charger Cable 250v


Type 1 To Type 2 EV Charger Cable 5m Electric Car Charging Cable For Electric Car


Product Description:



 The charging cable offers you the option of connecting to the charging station with the type 2 plug of the charging cable. You can then use the Type 1 plug to connect the power source to your electric car or plug-in hybrid vehicle.

With the Type 2 to Type 1 charging cable, you can charge older plug-in hybrids or e-cars with the special Type 1 connection, for example at public charging stations with Type 2 access or wall boxes.





Product Specification:



Vehicle connector type Type 1 to Type 2 connector - SAE J1772 to 62196-2
Available lengths 3M, 5M, 8M, 10M, 15M
Plug Color White / Black
Cable Material TPU
IP class IP55
Rated current 32 A / 230V - up to 7.4kW, single-phase
Operating voltage 250v
operating temperatur -30 ℃ to 50 ℃
Grounding Isolated ground
Mating cycles 10,000
Cable thickness 3*6.0mm² + 2 x 0.5mm²
Certification TUV, CE


5M Type 1 To Type 2 EV Charger Cable 0
5M Type 1 To Type 2 EV Charger Cable 1
5M Type 1 To Type 2 EV Charger Cable 2
5M Type 1 To Type 2 EV Charger Cable 3

5M Type 1 To Type 2 EV Charger Cable 4


5M Type 1 To Type 2 EV Charger Cable 5


FAQ:

Q1. What about the lead time?
A: 10-15 days for mass production.

Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.

Q3. Do you have any MOQ limit for EV Charging Cable order?
A: Low MOQ, 1pc for sample checking is available

Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.

     2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
