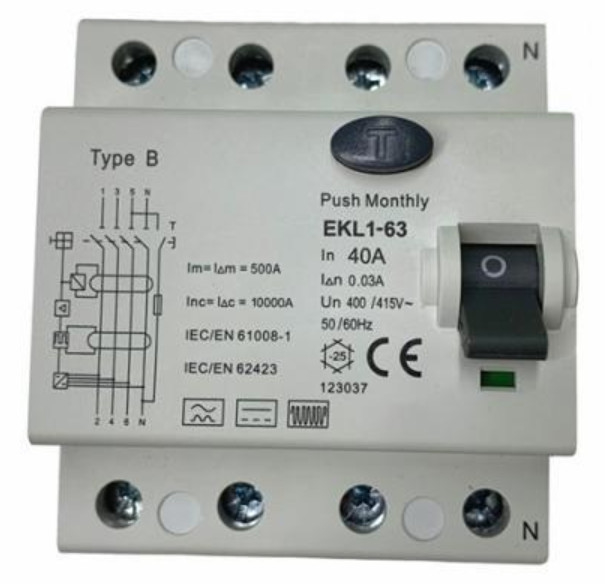

RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA
  • RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA
  • RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA

RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA

Place of Origin China
Brand Name HEIU
Certification TUV,CE,UL
Model Number EKL1-63
Product Details
Product Name:
Current Circuit Breaker Device
Rated Operating Voltage:
AC 240/415
Packaging Details:
Carton Box
MOQ:
5pcs
Delivery Time:
5-10 Days
Certification:
TUV,CE
High Light:

residual current circuit breakers 40A

,

residual current circuit breakers 63A

,

RCCB 4 Pole 0.03mA

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
negotiable
Packaging Details
Carton Box
Delivery Time
10-15 days
Payment Terms
T/T, L/C, Western Union
Supply Ability
500pcs/Day
Product Description



RCD Type B 2P 4Pole 40A 63A 230V 400V 0.03mA Residual Current Circuit Breaker





Product Description:



Type B RCDs. Protection against shock and fire hazards during EV charging. Requires detection of AC and DC residual fault currents. This can be achieved by the use of dedicated RCDs, or by a combination of DC and/or AC residual current monitors with an A Type RCD or some other switching device.

Mode Electromagnetic
Type(wave form of the earth leakage sensed): B
Rated current In
25,,40A,63A
Poles
4P
Rated voltage
4P 415V~
Insulation voltage Ui
500V
Rated frequency
50/60Hz
Rated residual operation current(I△n)
30mA
Rated residual making and breaking capacity (I△m)
500(In=2540A) 630(In=63A)
Short-circuit current Inc= I△c
10,000A
Break time under I△n
≤0.1s
Rated impulse withstand voltage(1.5/50) Uimp
4000V
Dielectric test voltage at ind.Freq. for 1min
2.5kV
Electrical life
2,000 Cycles
Mechanical life
4,000 Cycles





Installation:





Contact position indicator Yes
Protection degree IP20
Ambient temperature(with daily average≤35°C) -5°C~+40°C
Storage temperature -25°C~+70°C
Terminal connection type Cable/Pin-type busbar/U-type busbar
Terminal size top/bottom for cable 35mm2 18-3AWG
Terminal size top/bottom for busbar 35mm2 18-3AWG
Tightening torque 2.5Nm 22In-lbs
Mounting On DIN rail EN60715(35mm) by means of fast clip device
Connection
Power supply in both directions





Product Specification:

RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA 0



RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA 1

RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA 2

RCCB 4 Pole Residual Current Circuit Breakers 40A 63A 230V 400V 0.03mA 3







FAQ:



Q1. What about the lead time?

A: 10-15 days for mass production.



Q2. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.



Q3. How to proceed an order for EV charging cables?

A: 1) let us know your requirements or application.

     2) We quote according to your requirements or our suggestions.

     3) Customer confirms the samples and places deposit for formal order.

     4) We arrange the production.



Q4. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.



Q6: How to deal with the faulty?

A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.



     2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
