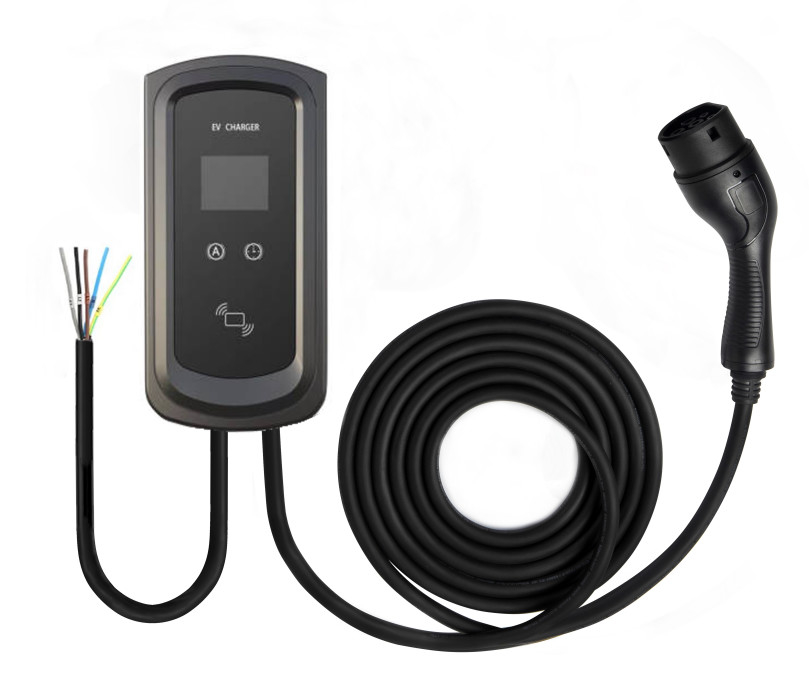

Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM
  • Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM
  • Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM
  • Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM

Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM

Place of Origin China
Brand Name HEIU
Certification TUV,CE,RoHS
Model Number Heiu-7000S
Product Details
Model Number:
Heiu-7000S
LCD Display:
2.8'' Color Screen
Station Size:
L161 X W86 X H310 (mm)
Start Mode:
RFID Card Swipe / APP Optional
RCD:
Type B (30mA AC + 6mA DC)
Operating Temperature:
-30℃ To 50℃
High Light:

PC940 ev charger wall mount

,

wallbox 7kw OEM

,

PC940 wallbox 7kw

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
negotiable
Packaging Details
each set in inner carton, then in master carton box
Delivery Time
20-25 days
Payment Terms
T/T, L/C, Western Union
Supply Ability
3000pcs/Month
Product Description



Outdoor EV Station OEM 7kw Wall Mounted EV Charger Type 2 7kw Type 2 Wallbox





Product Description:



The WALLBOX charging station - three-phase - Type 2 5m attached cable is powered in three-phase. Its charging intensity is adjustable instantly and at any time between 6A and 32A, via the Wallbox application. The terminal can therefore be configured to adapt to the available power of your home. Its attached T2 cable will ensure secure charging of your electric car in mode 3.





Product Specification:





Certificates & QC CE, UKCA, ROHS,ISO
Protection rank IP54 Cable; IP54 Station
LCD display 4.3’’ color screen (opt)
RCD type B (30mA AC + 6mA DC)
Power cord open ready to wire into electricity
Charging cable 5M Type 2 (TPU Jacket)
LED indicator R/G/B
Emergency stop Yes
Start mode RFID card swipe / APP optional
Station size 290x180x95 (mm)
Warranty 2 years (both cable and station)
lead time 20-25 days after deposit payment
Payment Terms T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)



Electrical Protection

Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating
Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo Logo put on shell by laser on station box or cable head
Package Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton



Features

Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP54, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen




Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM 0

Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM 1

Thermoplastic PC940 Shell EV Charger Wall Mount Wallbox 7kw OEM 2







FAQ:



Q1. What about the lead time?

A: 20-25 days for mass production.



Q2. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.



Q3. How to proceed an order for EV charging cables?

A: 1) let us know your requirements or application.

     2) We quote according to your requirements or our suggestions.

     3) Customer confirms the samples and places deposit for formal order.

     4) We arrange the production.



Q4. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production.



Q5: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.



Q6: How to deal with the faulty?

A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.



     2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
