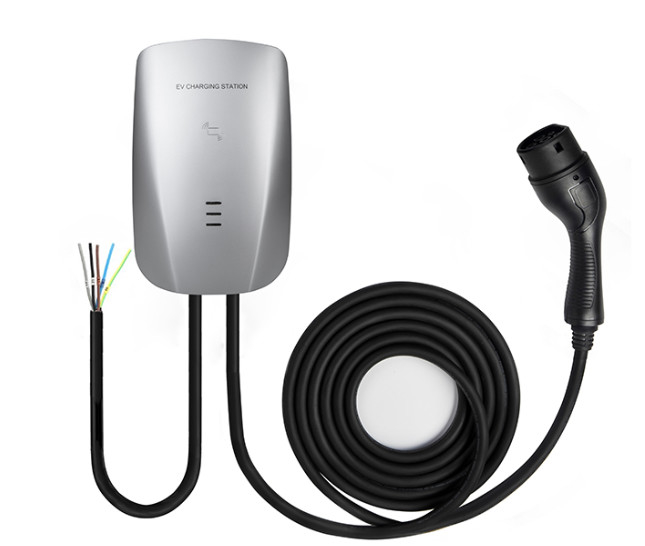

7.2KW 32A AC EV Charger Station For Electric Car Charger Wallbox Type 2 Cable
Product Description:
The WALLBOX charging station - three-phase - Type 2 5m attached cable is powered in three-phase. Its charging intensity is adjustable instantly and at any time between 6A and 32A, via the Wallbox application. The terminal can therefore be configured to adapt to the available power of your home. Its attached T2 cable will ensure secure charging of your electric car in mode 3.
Product Specification:
| Certificates & QC | CE, UKCA, ROHS,ISO |
| Protection rank | IP54 Cable; IP54 Station |
| LCD display | 4.3’’ color screen (opt) |
| RCD | type B (30mA AC + 6mA DC) |
| Power cord | open ready to wire into electricity |
| Charging cable | 5M Type 2 (TPU Jacket) |
| LED indicator | R/G/B |
| Emergency stop | Yes |
| Start mode | RFID card swipe / APP optional |
| Station size | 290x180x95 (mm) |
| Warranty | 2 years (both cable and station) |
| lead time | 20-25 days after deposit payment |
| Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |
|
Electrical Protection |
Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
| Materials Applied | Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark. |
| Customizing Logo | Logo put on shell by laser on station box or cable head |
| Package | Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton |
|
Features |
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen |
FAQ:
Q1. What about the lead time?
A: 20-25 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q3. How to proceed an order for EV charging cables?
A: 1) let us know your requirements or application.
2) We quote according to your requirements or our suggestions.
3) Customer confirms the samples and places deposit for formal order.
4) We arrange the production.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
